YY03 control system  Instruction for use

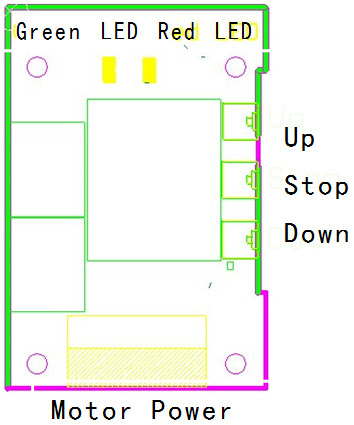

NO.1Program setting state of receiver
1.1 Switch power on, Press “Stop” button and “Up” button, “Red” LED and “Green” LED flash simultaneously.
1.2 Continue to press until “Green” LED bright , “Red” LED flash.

NO.2 Changed direction
In program state, press “Down” button “, panerai replica watches Red ”LED and “Green” LED bright ,changed direction  completely.
NO.3 Emitter matching
3.1 In program state, push “Up” button, “Red” LED and “Green” LED bright , then release the “Up” button.
3.2 Press “Stop” button or “Lock” button of emitter,  program matched.
NO.4 Delete all code on receiver.
4.1 In program state, push “Up” button, “Red” LED and “Green” LED bright.
4.2 Continue to press until the "Green" LED bright ,"Red" LED off, all code delete completely.
NO.5 Remote control for code quickly
5.1 Press the seed emitter “Stop” button and “Lock” button, until “Red” LED and “Green” LED bright , then release the “Stop” button and “Lock” button.
5.2 Press “Stop” button or “Lock” button of new emitter, program matched.
Note:
1 .Without code emitter , the first two emitter is original seed emitter, by default, the receiver to match the two is seed emitter.
2.Each step of the operation time was less than 5 sec.
