Products

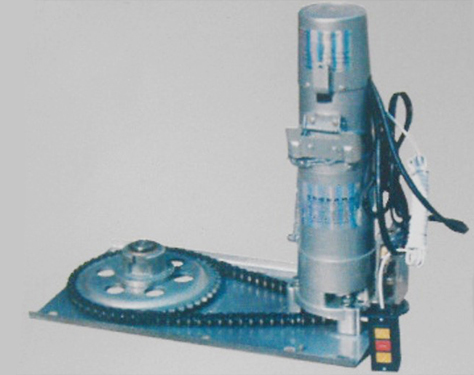

Roller shutter door motor(220V,50Hz)
Features:
1) 4 legs for 200kg/300kg/500kg/800kg.Nice looking and stable quality top replica watches uk.
2)Powerful strength, overheat protection when overloaded.
3)In case of blackout, a release chain can be operated door manually.
4)Loading up to 200kg/300kg/500kg/600kg/800kg/1000kg/1300kg/1500kg.
5)Limit switch unit enables precise adjustment of door in both up and down position.
6)Control panel wiring available to safety device, alarm lamp and remote control.
7)Easy installation, legerity design, low noise, small power replica watches shop consumption.
| Specifications of AC Series Shutter motor | |||||||
| Type | Rated Power(W) | Advancing Force (kg.f) | Output Toque (N.m) | Output speed（r/min) | Maximum Raising height(m) | Utilized Chain No. | Diameter of roller(mm) |
| 220V 50Hz | |||||||
| YY-200kg-1P | 150 | 200 | 110 | 5.3 | 5 | 08B | 104 |
| YY-300kg-1P | 250 | 300 | 168 | 6.2 | 6 | 08B/10A | 104 |
| YY-500kg-1P | 370 | 500 | 343 | 6.5 | 6 | 10A | 129 |
| YY-600kg-1P | 370 | 600 | 412 | 6.5 | 6 | 10A | 129 |
| YY-800kg-1P | 550 | 800 | 647 | 3.7 | 9 | 10A | 154 |
| YY-1000kg-1P | 550 | 1000 | 715 | 5.5 | 9 | 12A | 154 |
| YY-1300kg-1P | 600 | 1300 | 1401 | 6.4 | 9 | 12A | 209 |
| YY-300-kg3P | 180 | 300 | 168 | 6.2 | 6 | 10A | 104 |
| YY-500kg-3P | 250 | 500 | 343 | 6.5 | 6 | 10A | 129 |
| YY-600kg-3P | 250 | 600 | 420 | 6.5 | 6 | 10A | 129 |
| YY-800kg-3P | 550 | 800 | 850 | 5.06 | 9 | 10A | 154 |
| YY-1000kg-3P | 550 | 1000 | 875 | 5.5 | 9 | 12A | 154 |
| YY-1300kg-3P | 600 | 1300 | 1401 | 6.4 | 9 | 12A | 209 |
| YY-1500kg-3P | 800 | 1500 | 1617 | 4.9 | 9 | 16A | 209 |
